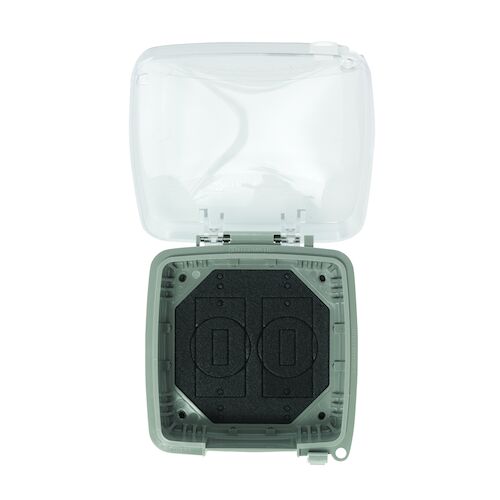

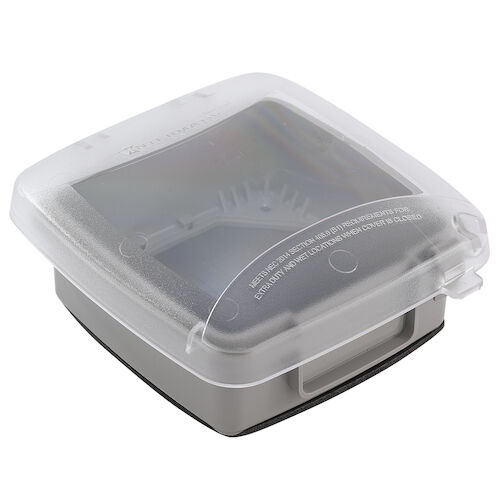

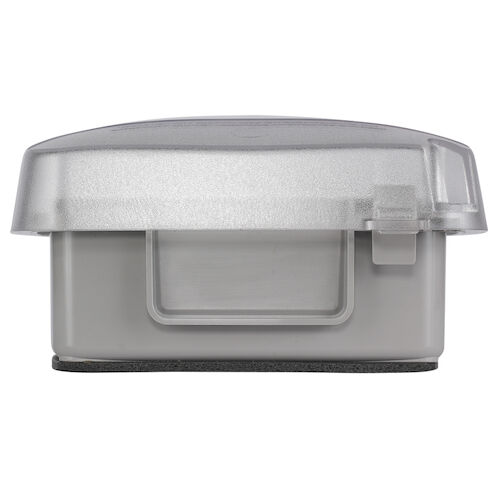

EXTRA-DUTY PLASTIC IN-USE WEATHERPROOF COVER, DOUBLE-GANG, VRT, 2.25″ CLEAR

Plastic In-Use Weatherproof Covers are extra-duty rated and easy to install. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features & Applications

Features

• Complies with 2014 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
• Exceeds CEC Article 26-702
• UL Certified for Type 3R outdoor enclosures
• Meets requirements for cold impact testing: -60° F (-51° C)
• Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
• 1⁄8″ (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
• Lockable hasp: All models accept up to 1⁄4″ (6 mm) dia. shank
• Impact rated: 12 lb. impact test to ensure cover remains intact
• Reinforced hinge pin designed to exceed 40 lb. hinge hang/stress test
• Warranty: 1-year limited
• One double-gang duplex (WP101) and one double-gang GFCI (WP102) insert included
• Max cord size: (2) #12 AWG or (1) #10 AWG
• 30/50 A (1) #6 AWG

Applications

• Industrial
• Commercial
• Manufacturing
• Residential
• Agricultural
• Signage
• Athletic Fields
