Description

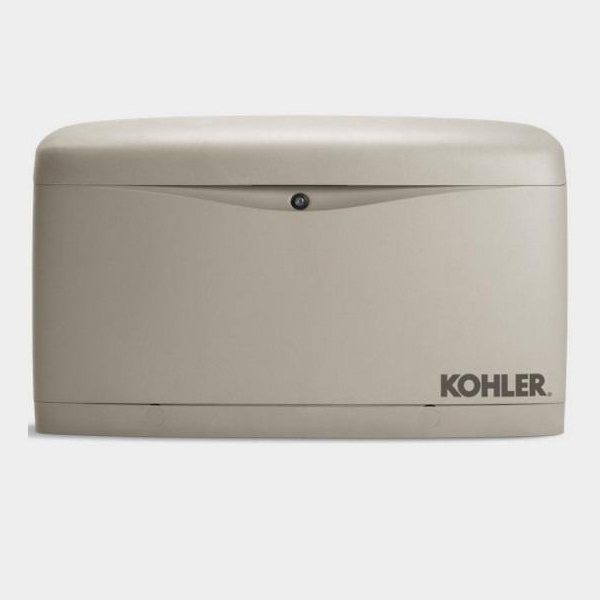

Generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather. Powerfull in just 10 seconds, generator automatically restores power to a 5 ton (60000 BTU) air conditioner, major appliances and electronics. PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances. Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics. Powered by reliable KOHLER Command PRO® engine designed and tested for tough commercial applications, with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments, operation speed is 3600 RPM (the standard for air-cooled generators). Compatible with optional OnCue® Plus and OnCue® plus wireless generator management systems, and programmable interface module. Also compatible with load control module (LCM) or load shed kit with single-phase generators only.
Specifications
| Brand Name | Kohler | Item Name | Standby Generator |
|---|---|---|---|
| Type | Multi Fuel, Air Cooled, Residential | Voltage Rating | 120/240 V |
| Amperage Rating | 75 A Natural Gas, 83 A LPG, 100 A Line Circuit Breaker | Wattage | 18 kW Natural Gas, 20 kW LPG |
| Phase | 1 | Fuel Type | LPG/Natural Gas |
| Frequency Rating | 60 Hz | Fuel Consumption | Natural Gas: 8 m³/h at 100% Load, 4.6 m³/h at 50% Load, LPG: 3.9 m³/h at 100% Load, 2.3 m³/h at 50% Load |
| Noise Level | 69 dB | Engine Displacement | 999 cm³ |
| Number of Cylinders | 2 | Compression Ratio | 8.8:1 |
| Speed Rating | 3600 r/min | Material | Aluminum Cylinder Head, Composite Enclosure |
| Dimensions | 1216 mm L x 655 mm W x 733 mm H | Weight | 535 lb |
| Temperature Rating | 260 °C Exhaust | Includes | OnCue Plus Generator Management System |
| Standards | EPA Compliant, UL2200, cUL Listed, CSA, ISO 9001 Certified |
