Description
Product Details

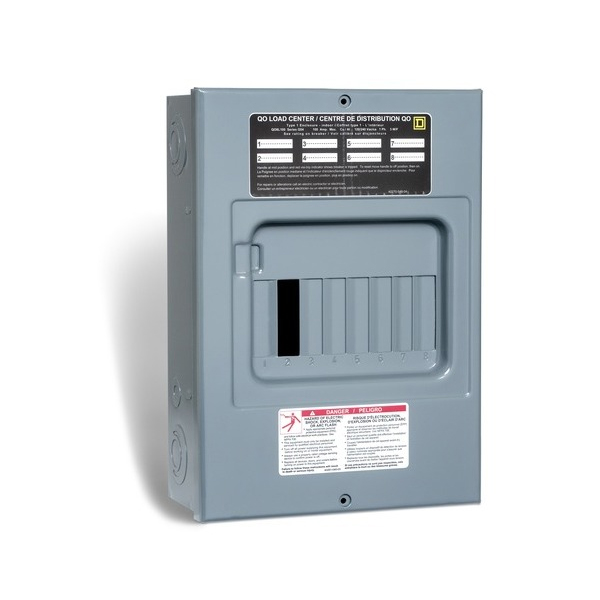

QO8L100S LOADCENTER
MAIN LUG; 120/240 VAC VOLTAGE RATING; 100 AMPERE CURRENT RATING; 8 MAXIMUM SPACE(S); INTERRUPTING RATING 10 KILOAMPERE; TIN PLATED ALUMINUM BUS MATERIAL; NEMA 1, INDOOR ENCLOSURE; SIZE 4.88 INCH W X 4 INCH D X 9.38 INCH H; APPROVAL UL, NOM; QO MODEL
Technical Specifications
IEC Contactors
| Current Rating | 100 AMPERE |
|---|---|
| Voltage Rating | 120/240 VAC |
| Size | 4.88 INCH W X 4 INCH D X 9.38 INCH H |
| Approval | UL, NOM |
| Interrupting Rating | 10 KILOAMPERE |
| Maximum Number of Spaces | 8 |
| Max Number of Spaces | 8 |
| Bus Material | TIN PLATED ALUMINUM |
| Circuit Configuration | 1 PHASE 3 WIRE |
| Enclosure Type | NEMA 1, INDOOR |
| Additional Information | MOUNTING TYPE SURFACE |
| Product Name | LOADCENTER BOX AND INTERIOR |
| Mfr Fullname | SQUARE D/TELEMECANIQUE |
| Mfr UNSPSC | 39121101 |
| Catalog Number | QO8L100S |
| Pkg Weight | 7.93 |
| Type | MAIN LUG |
| Pkg UOM | EA |
| Pkg Qty | 1 |
| Pkg Type | PK |
| Pkg Weight UOM | LB |
| Mfrcode | SQD |
