Description
Product Details

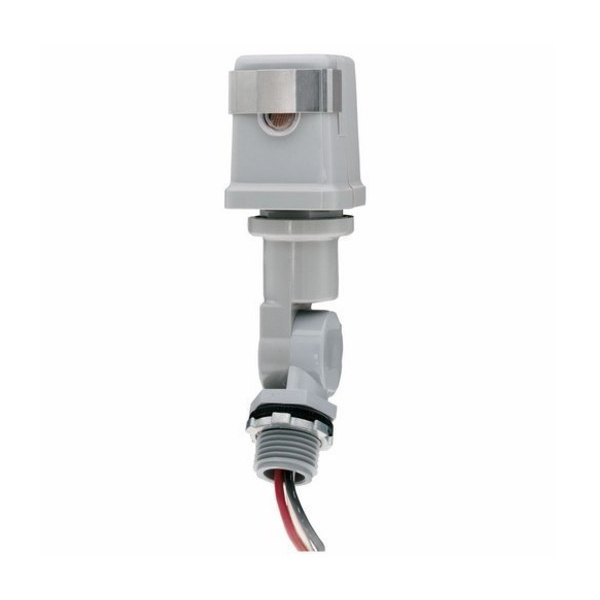

K4221C SWIVEL PHOTOCELL 120V
- THERMAL
- 120 VAC VOLTAGE RATING
- 1800 W TUNGSTEN LOAD
- 1000 VA BALLAST LOAD
- 1 TO 5 FC TURN ON LIGHT LEVEL
- 3 TO 15 FC TURN OFF LIGHT LEVEL
- 6 INCH WIRE LEAD TERMINAL
- TEMPERATURE RATING -40 TO 158 DEG F
- 1/2 INCH-14 TPI STEM MOUNTING
- SWIVEL POSITION
Technical Specifications
Occupancy Sensors & Photo Controls
| Mounting Position | SWIVEL | Pkg Weight UOM | LB |
|---|---|---|---|
| Voltage Rating | 120 VAC | Pkg Weight | .301 |
| Application | AREA/BILLBOARD/CAR LOT/MUNICIPAL/PARKING LOT/ROADWAY/SECURITY/STREET LIGHTING | Product Name | LIGHTING PHOTOCONTROL |
| Size | 1 9/16 INCH W X 1 9/16 INCH D X 5 1/2 INCH H | Mfr Fullname | INTERMATIC, INC |
| Approval | UL 773-A | Mfr UNSPSC | 39121524 |
| Mounting | 1/2 INCH-14 TPI STEM | Catalog Number | K4221C |
| Terminal Type | 6 INCH WIRE LEAD | Mfrcode | INT-MAT |
| Turn Off Light Level | 3 TO 15 FC | Pkg Type | PH |
| Turn On Light Level | 1 TO 5 FC | Type | THERMAL |
| Ballast Load Rating | 1000 VA | Pkg Height | 4.88 |
| Tungsten Load Rating | 1800 W | Pkg Width | 1.75 |
| Temperature Rating | -40 TO 158 DEG F | Pkg Length | 3 |
| Enclosure Material | SONIC WELDED POLYCARBONATE | Pkg UOM | EA |
| Additional Information | TUNGSTEN CURRENT 15 AMPERE BALLAST CURRENT 8.3 AMPERE COLOR GRAY | Pkg Qty | 12 |
