Description
Description

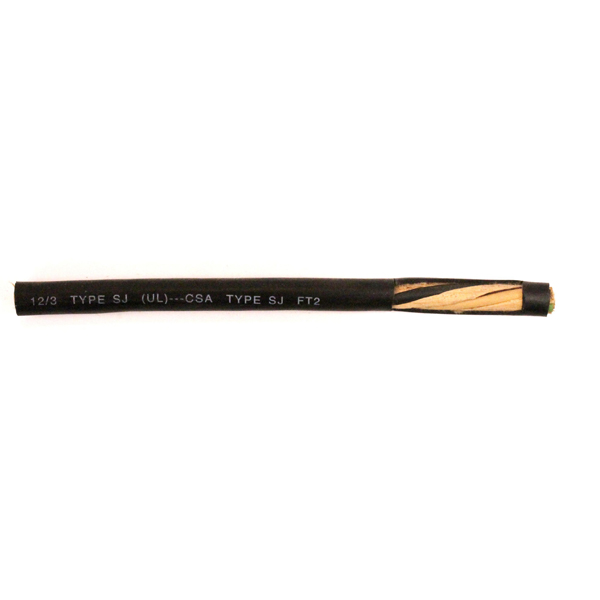

Carolprene® Jacketed Type SJOOW 90ºC, 300 Volt, UL /CSA Portable cord. 18 through 10 AWG fully annealed stranded bare copper. Premium-grade, color-coded 90ºC EPDM. Carolprene®, black. Temperature range: -40ºC to +90ºC. Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Water-resistant. UL Listed and CSA Certified for indoor and outdoor use. Ozone-, sunlight (UV)- and weather-resistant. TRU-Mark® sequential footage marking.
Specifications
| Brand Name | Approved Vendor | Item Name | SJOOW Portable Cord |
|---|---|---|---|
| Type | Oil/Water Resistant, Cabtyre | Color | Black Jacket |
| Wire Gauge Size | 14 AWG | Number of Conductors | 3 |
| Stranded/Solid | Stranded | Voltage Rating | 300 V |
| Conductor Material | Bare Copper | Jacket Material | Chlorinated Polyethylene (CPE) |
| Strands | 41/30 | Outside Diameter | 0.38 in |
| Amperage Rating | 18 A | Insulation Material | EPDM |
| Insulation Thickness | 0.03 in | Temperature Rating | 90 °C |
| Weight per 1000 Foot | 106 lb | Standards | UL62, CSA C22.2-49, OSHA Compliant, MSHA Certified, Federal Specification JC580 |
| Application | For Machine Tools, Power Tools, Dockside Power Applications, Motor Leads, Portable Machinery, Cranes and Submersible Pumps |
