Description
Product Details

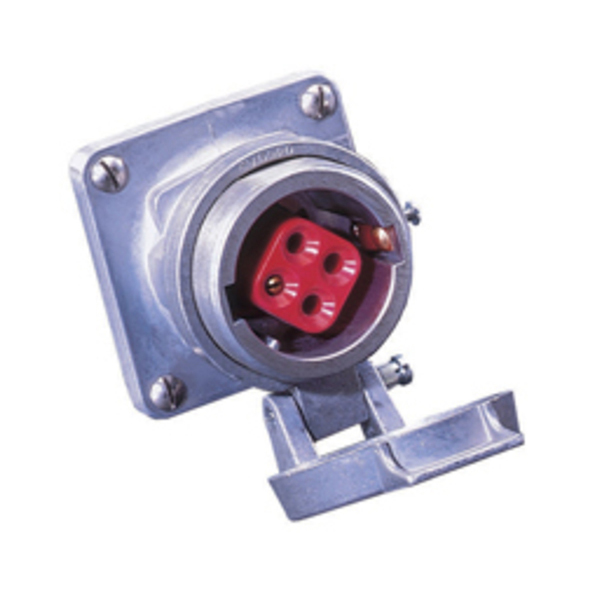

APJ6485 MALE PLUG 60A 600V 4P 3W
ARKTITE 60 AMP PLUG 3 WIRE 4 POLE STYLE 2 0.50 TO 1.45 CABLE DIAMETER
Technical Specifications
Pin & Sleeve Devicrs
| Current Rating | 60 AMPERE |
|---|---|
| Voltage Rating | 600 VAC AT 50 TO 400 HZ/250 VDC |
| Approval | UL 514, UL 1010, UL 1682, CSA C22.2 |
| Additional Information | AREA OF APPLICATION CHEMICAL PLANT, HEATING AND COOLING UNIT, LIGHTING SYSTEM, MANUFACTURING PLANT, MEAT PACKING PLANT, PROCESS INDUSTRY INCLUSION CABLE GRIP, NEOPRENE BUSHING WEATHER PROOF WHEN USED WITH SPRING DOOR OR THREADED CAP COVER |
| Number of Wires | 3 |
| Number of Poles | 4 |
| Minimum Cable Outer Diameter | 0.75 INCH |
| Maximum Cable Outer Diameter | 1.45 INCH |
| Grounding Style | 2, SHELL, EXTRA POLE |
| Constructional Feature | CORROSION RESISTANT, DIRT TIGHT, DUST TIGHT, MOISTURE RESISTANT |
| Material | COPPER FREE ALUMINUM |
| Product Name | CIRCUIT BREAKER MATING PLUG |
| Mfr Fullname | COOPER CROUSE-HINDS INDUSTRIAL |
| Mfr UNSPSC | 39121402 |
| Catalog Number | APJ6485 |
| Pkg Weight | 3.1 |
| Type | CIRCUIT BREAKING, COMPRESSOR, CONVEYOR, MOTOR GENERATOR SET, POLARIZED, WELDER |
| Pkg UOM | EA |
| Pkg Type | PH |
| Pkg Weight UOM | LB |
| Mfrcode | CRS-H |
